Bgp routing cisco packet tracer. Route updates are stored in a routing information base rib.

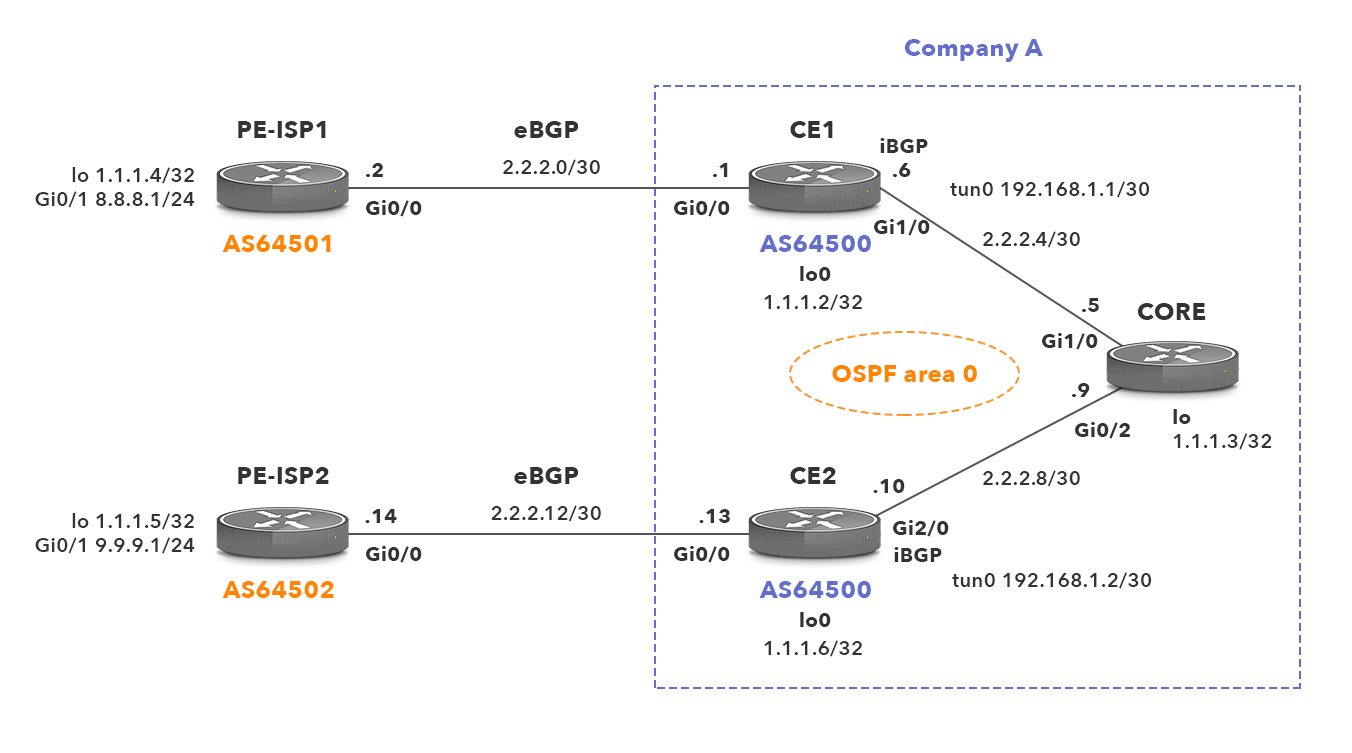

Bgp Over Gre Tunnel Noction

This lesson will explain how to configure BGP between a Cisco IOS device and a Cisco SD-WAN vEdge router.

Bgp router id cisco. By default the Cisco software sets the router ID to the IPv4 address of a loopback interface on the router. As this ip routing protocols rip ospf bgp pnni and cisco routing protocols it ends up swine one of the favored book ip routing protocols rip ospf bgp pnni and cisco routing protocols collections that we have. Well use feature and device templates to accomplish this.

If we change the weight value of one router that change will not propagate to other router and the route with maximum weight value will be considered as the best route. Packet Tracer - CCNP ENCOR v8. That is I need to add the network to routing table so I can advertise it.

Bgp Advertisement BGP Route Reflection and Multiple Cluster IDs - Cisco - Once r1 learns about prefix 3330 24 then the next hop ip address will remain 192168233. BGP Command Reference Cisco IOS XE Release 3SE Catalyst 3850 Switches Chapter Title. Ip route 1011000 2552552550 null0.

Router ID is the tie-breaker for BGP path selection. Displays the LSAs that are pending to be sent to BGP. The BGP router ID is a 32-bit value that is often represented by an IPv4 address.

BGP in Packet Tracer. I used to see Ciscos approach when configure BGP. BGP Router ID.

The BGP router ID is a 32-bit value that is often represented by an IPv4 address. The default value of weight is 0 and the range is from 0 to 65535. The remote neighbors BGP RID is indicated as 0000 simply because the BGP peering with that neighbor is not established yet and so its RID is not known - this is also confirmed by the fact that the neighbors BGP state is Idle meaning that there is no TCP session established and there is no active attempt to establish one.

Per-VRF Assignment of BGP Router ID. Information AboutPer-VRFAssignment ofBGPRouter ID BGPRouter ID TheBGProuteridentifierIDisa4-bytefieldthatissettothehighestIPaddressontherouterLoopback. BGP will drop a learned route if it sees its own router id in the packet.

Routers running the bgp protocol use 3 types of routing tables for different purposes. The weight attribute is a Cisco proprietary technology and considered as first attribute in BGP. Now I need to configure FRR routing suite which mostly mimics the Ciscos config language and I really doubt if I.

BGP Commands_ O through show bgp. The router id is chosen by either the loopback address on the device. Below you will find all bgp labs.

Router bgp 64511 network 1011000 mask 2552552550. BGP attempts to obtain a router ID. In addition to this release two new devices have been added to the Cisco 4331 Integrated Services Router and Cisco Wireless Lan.

When this command is enabled the lowest router ID will be selected as the best path when all other attributes are. Router show ip bgp vpnv4 vrf vrf_user summary BGP router identifier 109911 local AS number 45000 BGP table version is 43 main routing table version 43 8 network entries using 1128 bytes of memory 8 path entries using 544 bytes of memory 1610 BGP pathbestpath attribute entries using 1856 bytes of memory 6 BGP AS-PATH entries using 144 bytes of memory 3 BGP. This is why you remain in the best website to see the amazing ebook to have.

BGP Configuration Guide Cisco IOS Release 15MT. You can configure the router ID. BGP Router-IDs are supposed to be unique values and this is normally achieved by using global IPv4 addresses.

By default Cisco NX-OS sets the router ID to the IPv4 address of a loopback interface on the router. 1 available best 1 table default advertisements Overview one of the long awaited benefits of routeros version 7 is a new routing. PDF - Complete Book 115 MB PDF - This Chapter 14 MB View with Adobe Reader on a variety of devices.

Next we will configure the BGP configuration part on R1. In order to configure static routing in Cisco IOS routers this is the command to use. PDF - Complete Book 215 MB PDF - This Chapter 156 MB View with Adobe Reader on a variety of devices.

Once r1 learns about prefix 3330 24 then the next hop ip address will remain 192168233. An address-family correlates to a specific network protocol such as IPv4 IPv6 and the like and additional granularity through a subsequent address-family identifier. You could use track objects in Cisco IOS to track route reachability or metric the status of an interface or IP SLA compliance for a long time.

The router id is used for loop prevention. For BGP sessions between neighbors to be established BGP must be assigned a router ID. For more details see the Cisco IOS IP Routing.

In router r1 type the following command to exit the vtysh session. Originally BGP was intended for routing of IPv4 prefixes between organizations but RFC 2858 added Multi-Protocol BGP MP-BGP capability by adding extensions called address-family identifier AFI. Go to Rules and policies Firewall rules Add firewall rule New firewall rule to create two firewall rules allowing traffic one is from all zones to the MPLS zone the other is from the MPLS zone to all zones.

The following output is from Router E in the figure above after this task has been performed at both Router B and Router D. Note the metric MED values for the two routes to network 1721610. Clear ip bgp router bgp mode.

The peer 19216821 at Router D has a. Device show ip ospf database dist-ls-pending OSPF Router with ID 10006 Process ID 10 Router Link States Area 0 Link ID ADV Router Age Seq Checksum Link count 10007 10006 4 0x80000006 0x009678 1 1721606 1721606 1110 0x80000018 0x00CAF9 2 Has-unresolved. Only the syntax applicable to this task is used in this example.

The BGP router ID. If all other metrics accessibility administrative weight local preference etc are equal BGP determines the router ID using the following priority. The bgp bestpath compare-routerid command is used to configure a BGP routing process to use the router ID as the tie breaker for best path selection when two identical routes are received from two different peers all the attributes are the same except for the router ID.

The BGP Router can act as a Route-Reflector and an RR client. Cisco Packet tracer is a network simulator software for CCNA exams preparation. By default bgp mode advertises each allocated ip to the configured.

To add the IP address of the BGP router. The router ID is sent to BGP peers in the OPEN message when a BGP session is established. Within a site sometimes you need an IGP like OSPF or perhaps BGP.

BGP uses a router ID to identify BGP-speaking peers. Initially you could use them to implement reliable static routing or even shut down a BGP session or trigger EEM scriptsWith a bit more work and a few more EEM scripts you could use object tracking to create time. Information About Per-VRF Assignment of BGP Router ID BGP Router ID TheBGProuteridentifierIDisa4-bytefieldthatissettothehighestIPaddressontherouterLoopback.

Bgp Orf Outbound Route Filtering Capability Routing And Switching Bgp Cisco Ccna. To establish BGP sessions between peers BGP must have a router ID which is sent to BGP peers in the OPEN message when a BGP session is established. This means that you can technically have the same router id in the environment as another router but you wont be able to share routes between those two routers along with it being a very bad design.

If no loopback interface is configured on the device the software chooses the highest IPv4 address configured on a physical interface of the device to represent the BGP router ID. Cisco SD-WAN routers use OMP for routing information on the overlay network. BGP routing information includes the complete route to each destination.

Use the address configured by the bgp router-id command. Show ip bgp summary. The path selection process uses a variety of metrics to select a route.
